API Seal RED (Re-Mastered Engineering Design) offers a variety of mechanical seal products for use in pump sealing applications, agitators and other shaft driven mechanisms. We offer materials based on specific applications and working conditions that is suitable for good quality pump sealing performance. We also offer pump repair and sealing conversion from packing to mechanical seals.
Rubber Expansion Joint
Metal Expansion Joint
Fabric Expansion Joint
- Industry standard design
- Multiple or filled arch available
- Fabric/ rubber/ metal reinforced
- 250 to 400 degrees F
- Full vacuum all sizes and FF
- High/Low pressure available
- Offset designs available
- Normally available only for 150# and 300# flange
- Floating flange design
- Fabric/rubber reinforced
- Sizes to 12” ID
- Compensates for torsional offsets/ movement
- Molded bellow
- Nitrile tube neoprene cover
- Round, rectangle, square design
- 250, 300 and 400 degrees F
- +/- 3 psi
- Flanged or belt type
- Rubber/fabric reinforcement
- Small and large diameter
- Open ended or continuous
- Chemical Resistance
- Fabric/rubber reinforcement
- Spark Tested
- High Pressure design
- 300 degrees F maximum
- Greater movement
- Sizes up to 20” ID
- Utilized to connect piping of different
- diameters Concentric – center line of pipes remains the same
- Eccentric – center line of pipe changes, one side remains flat
- 250 to 400 degrees F standard
- Full vacuum
- All sizes (FF) available

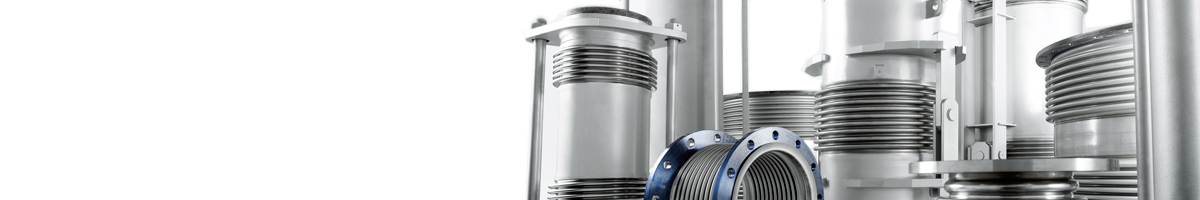

Metal Expansion Joints covers any application where Fabric and Elastomer Expansion Joints are not suitable, mainly due to pressure conditions. As for all products the focus is on superior quality and special design solutions. The Metal Expansion Joints are designed according to either EN14917, EN13445 or EJMA.
Standard designs are Axial-, Lateral-, Angular- and Universal Expansion Joints, in materials of stainless steel or titanium. The circular designs come in standard sizes from a 50 mm diameter up to 5000 mm diameter. Pressure range from -1 to 250 Bar depending on diameter. The rectangular designs are manufactured with rounded, single or double miter corners. The expansion joints are manufactured as single or multiply bellows and can be combined into double expansion joints (Universal). The joints can be fitted with tie rods, hinges and other accessories if required.
Customized designs include pressure balanced expansion joints as well as a complete range of penetration for boiler tube outlet service.
Design calculations are carried out according to counting standards and can be documented by optional testing procedures.
API offers a series of standard types of Fabric Expansion Joints along with a numerous of special designs. Custom made Fabric Expansion Joints are available in all sizes and shapes for any application – from single bellows for ventilating systems to highly advanced multilayer expansion joints for gas turbine exhaust (see below). The common factor is always the craftsmanship, the use of superior materials and knowing their forces and limitations.
The manufacturing range of Fabric Expansion Joints consists of 26 standard types divided into five categories. These cover a wide range of conditions, which also can be altered to fit special needs. The temperature capability ranges from -50° C to 1000 °C and the pressure ranges from -50kPa to 50 kPa.
GAS TURBINE EXHAUST EXPANSION JOINTS
The innovative design solutions introduced with the GTX-range have been achieved through several years of in-house and on-site testing, involving intensive use of FEA-analysis. Gas Turbine Exhaust Expansion Joints are available in a variety of frame designs and fabric materials. Below you will find the three standard GTX fabric designs:
GTX-A: This fabric is used in applications that have no pressure pulses and have fairly smooth flow velocities. The design is typically used on units installed down stream of the turbine, after the diffuser sections where the gas flow characteristics have smoothed.
GTX-B: This is the most commonly used fabric design that will withstand normal pressure pulses and flow conditions. A unit composed of fabric can be installed e.g. at the bypass outlet sections or after the dif-fuser sections.
GTX-C: The GTX-C design is recommended for heavy-duty gas turbine exhaust applications where high-pressure pulsations with turbulent flow conditions exist. For an optimal GT solution our well proven frame designs ensures long life time.
